Universal 1 Gang Push Dimmer Kinetic Switch w/ 1 x Dimming Module (RF)

In stock
SKU
ALKPSW1RF/AL3200RF

Key Features

  • Energy Rating A+
Notify me when the price drops

Included:

1 x 1 Gang Kinetic Switch

1 x LED Dimmer Module

Have the ability to control any dimmable light fitting from anywhere within the home.  Easy to install and compatible with all types of LED light fixtures. Upto 4 modules can be installed in different rooms and programmed to the same switch.

£37.50
Ask a question about this product

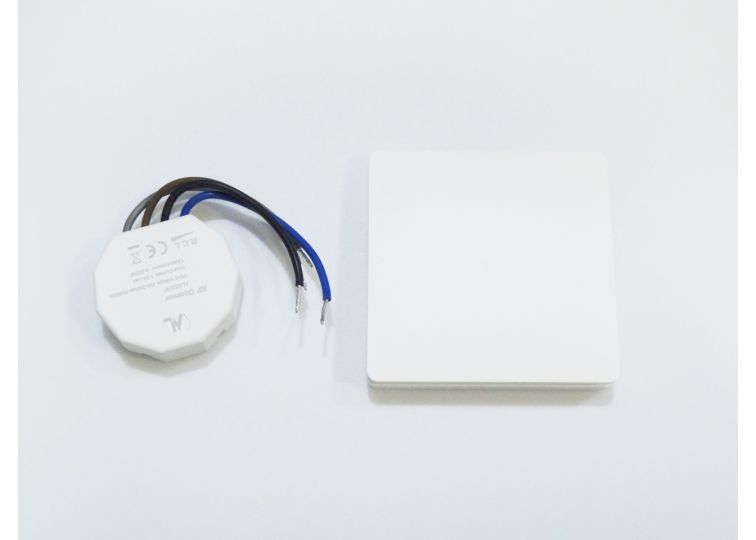

main product photo

Have the ability to control any dimmable light fitting from anywhere within the home.  Easy to install and compatible with all types of LED light fixtures. Upto 4 modules can be installed in different rooms and programmed to the same switch.

Module specifications:

Dimming type:                          Kinetic Push Button Handheld Switch

Input voltage (For Module):       170-260V

Output power (For Module):       3-200W

Dimension :                              52 x 47 x 16mm



Installation of Module:

Neutral (N/Blue) -       Connect to Neutral Line

Live (L/Black) -           Connect to Live Line

Live Load (L/Brown) -  Connect to Load/Switch Wire

Push (P/Grey) -           Do not Connect. This wire is not required when installing a RF Module



Syncronizing from Switch to Module:

1. Switch off the light fitting from the wall switch

2. Allow 3 seconds to pass & switch on the light fitting for 10 secs.

3. Repeat this 3 times.

4. If the above process is carried out correctly on the 4th time of switching the light fitting on from the wall switch it should begin to blink at which point the kinetic switch should be pressed down once. This should now sync the light fitting to the kinetic switch.



Please Note:

  1. This product operates on mains supply (240vAC) ,
  2. Please isolate the supply before termination,
  3. All the connections should be made using suitable termination box
  4. Keep the Module away from any harmful subtances in the ceiling void such as water or heat etc.
  5. Before switch on the power(mains) re-check all the connections



CE, RoHs & ERP Certified
