Universal 1 Gang Push Dimmer Kinetic Switch w/ 1 x Dimming Module (RF/WIFI/PB)
Key Features
- 200 Watt
- Up to 50,000 Hours Life Expectancy
- Energy Rating A+

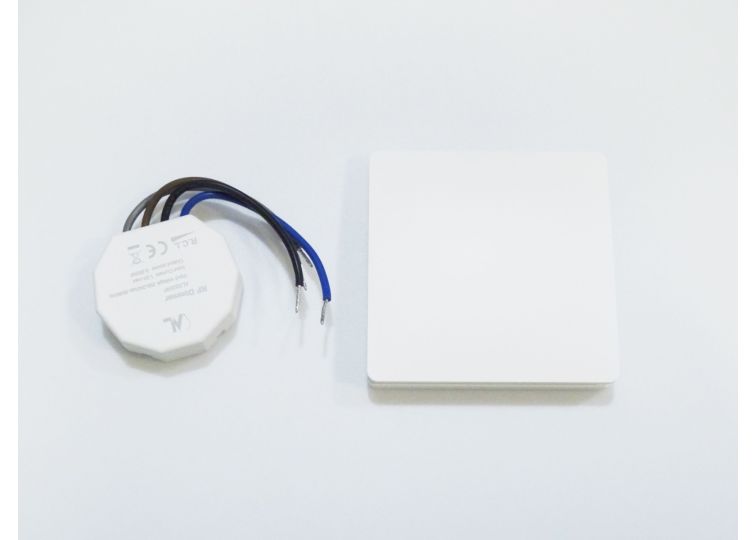

Included:
1 x 1 Gang Kinetic Switch
1 x LED Dimmer Module (RF/PB/WIFI)
Have the ability to control any dimmable light fitting from anywhere within the home. Easy to install and compatible with all types of LED light fixtures. Upto 4 modules can be installed in different rooms and programmed to the same switch.
Have the ability to control any dimmable light fitting from anywhere within the home. Easy to install and compatible with all types of LED light fixtures. Upto 4 modules can be installed in different rooms and programmed to the same switch.
Module specifications:
Dimming type: Kinetic Push Button Handheld Switch
Input voltage (For Module): 170-260V
Output power (For Module): 3-200W
Dimension : 52 x 47 x 16mm
Installation of Module:
Neutral (N/Blue) - Connect to Neutral Line
Live (L/Black) - Connect to Live Line
Live Load (L/Brown) - Connect to Load/Switch Wire
Push (P/Grey) - Do not Connect. This wire is not required when installing a PB Switch
Syncronizing from Switch to Module:
1. Switch off the light fitting from the wall switch
2. Allow 3 seconds to pass & switch on the light fitting for 10 secs.
3. Repeat this 3 times.
4. If the above process is carried out correctly on the 4th time of switching the light fitting on from the wall switch it should begin to blink at which point the kinetic switch should be pressed down once. This should now sync the light fitting to the kinetic switch.
Syncronizing from Device to Module:
1. Ensure your wifi is split between 5GHz & 2.4GHz
2. Download the "Tuya Smart" Application
3. Register a new account.
4. Add device Manually & Scroll down to the "wireless switch (other)" Option
5. Select this option, when prompted, please select the 2.4GHz WIFI option to run the module.
6. Once synced, the device will confirm.
Please Note:
- This product operates on mains supply (240vAC) ,
- Please isolate the supply before termination,
- All the connections should be made using suitable termination box
- Keep the Module away from any harmful subtances in the ceiling void such as water or heat etc.
- Before switch on the power(mains) re-check all the connections
CE, RoHs & ERP Certified
